OboDesk PRO Fiber Optic Patch Cable - SC/APC to SC/FC/LC/ST Single Mode
SC/APC-SC/APC / 3 M
$4.42
Sale price
$4.42
Regular price
$5.81
Skip to product information
OboDesk PRO

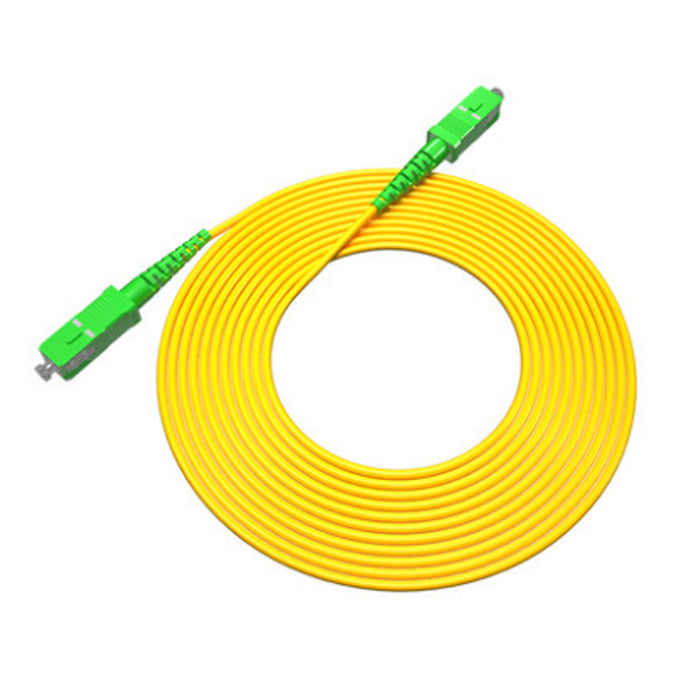

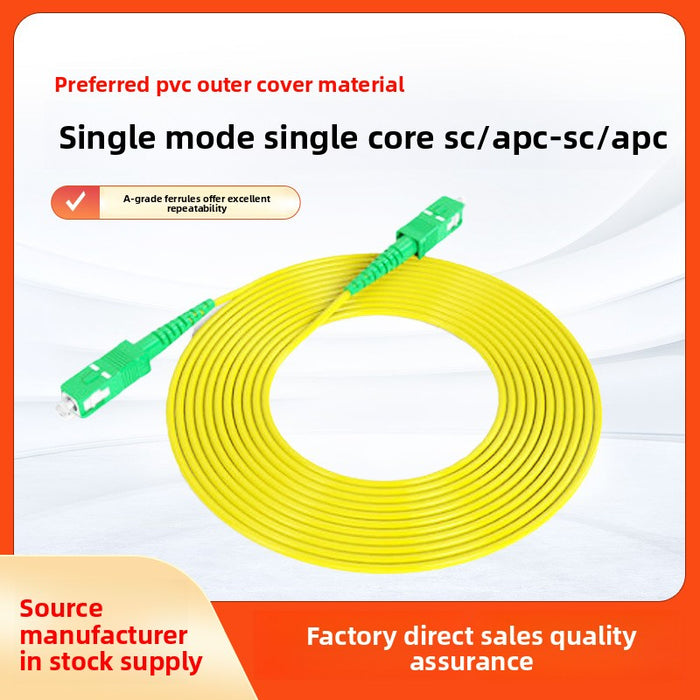

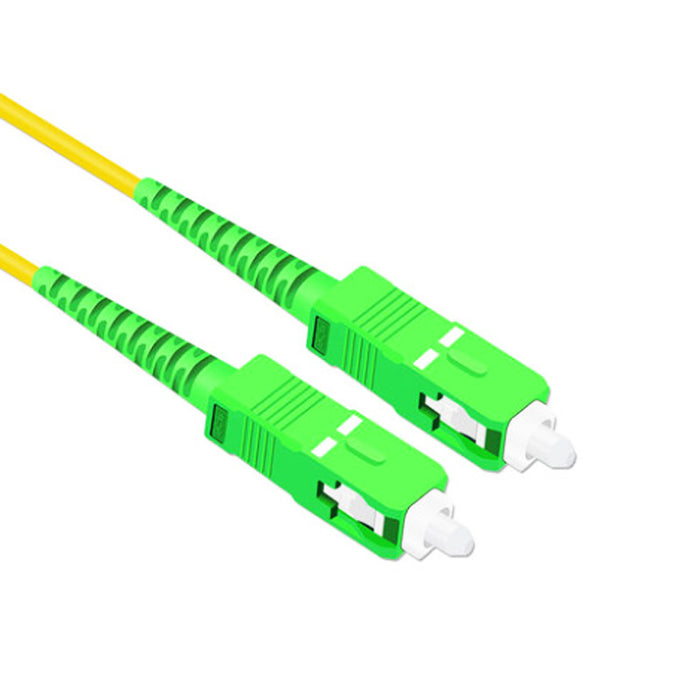

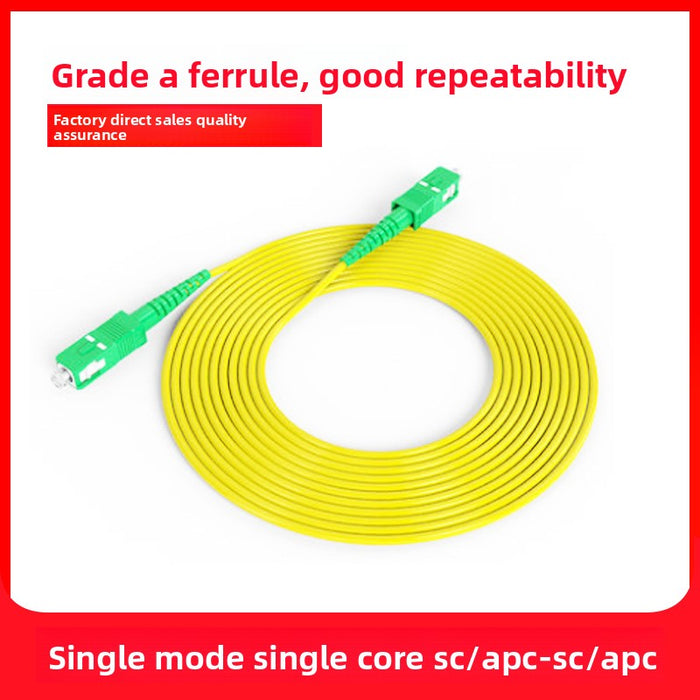

Single-Mode Fiber Optic Patch Cable
Telecom-grade OS2 single-mode fiber patch cords with factory-polished connectors. Available in SC/APC, FC, LC, and ST terminations with lengths from 1m to 30m.
Key Features
OS2 Single-Mode Fiber: 9/125μm core for long-distance, high-bandwidth connections
Factory-Polished Connectors: Low insertion loss (<0.3dB) and high return loss (>50dB for APC)

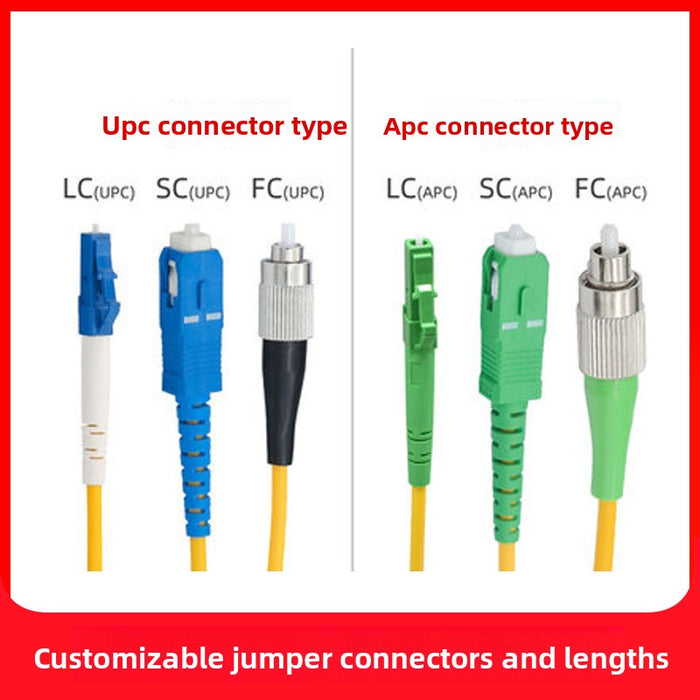

Multiple Terminations: SC/APC, SC/UPC, FC/APC, FC/UPC, LC, and ST options
Flexible Lengths: 1m, 3m, 5m, 10m, 15m, 20m, and 30m available
3.0mm Jacket: Durable PVC jacket with Kevlar strength member
Specifications
Spec
Value
Fiber Type
OS2 Single-Mode 9/125μm
Insertion Loss
<0.3 dB
Return Loss
>50 dB (APC) / >45 dB (UPC)
Operating Temp
-20°C to +70°C
Jacket
3.0mm PVC, yellow (single-mode standard)
Connector Polish
APC (green) or UPC (blue)
Use Cases
Data Centers: Switch-to-switch and patch panel connections
Telecom / ISP: FTTH, PON, and central office patching
Enterprise Campus: Building-to-building backbone links
Testing & Measurement: Reference cables for OTDR and power meter calibration
What's Included
1x Fiber optic patch cable (length and connector per variant)
Protective dust caps on both ends
Bulk & B2B Orders
Cabling a new rack or restocking a supply closet? Volume pricing available from 10 cables.
Request a bulk quote →
FAQ
What is the difference between APC and UPC?APC (green) connectors have an angled end face that reduces back-reflection, ideal for analog video and PON. UPC (blue) has a flat polish suitable for most digital data applications. Never mix APC and UPC on the same link.
Which connector type do I need?Check your switch or patch panel port. LC is most common in modern equipment. SC is standard for PON/FTTH. FC is used in high-vibration environments.
Questions? Contact our PRO team or WhatsApp.
