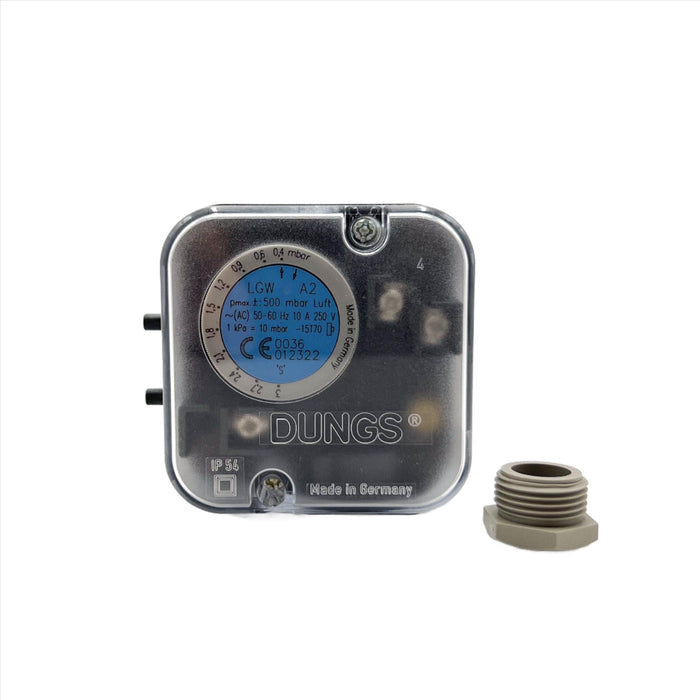

Dungs LGW 50 A2 Pressure Switch
The LGW 50 A2 is an adjustable differential pressure switch as per EN 1854 designed for automatic burner controls.
Suitable for switching a circuit on, off or over on changes in actual pressure value relative to the set reference value. The reference value (switching point) is adjusted on a setting wheel provided with a scale.
Suitable for air, flue and exhaust gases and other non-aggressive gases as differential pressure switches; not suitable for industrial combustion gases.
Switching function
As pressure rises: 1 NC opens, 2 NO closes
As pressure falls: 1 NC closes, 2 NO opens
Technical Specifications
IP Rating: IP54
Pressure Range: 0.25-5 kPa (2.5-50 mbar)
Max Pressure: 50 kPa (500 mbar)
Dungs Model Number: 272341 or 107425
