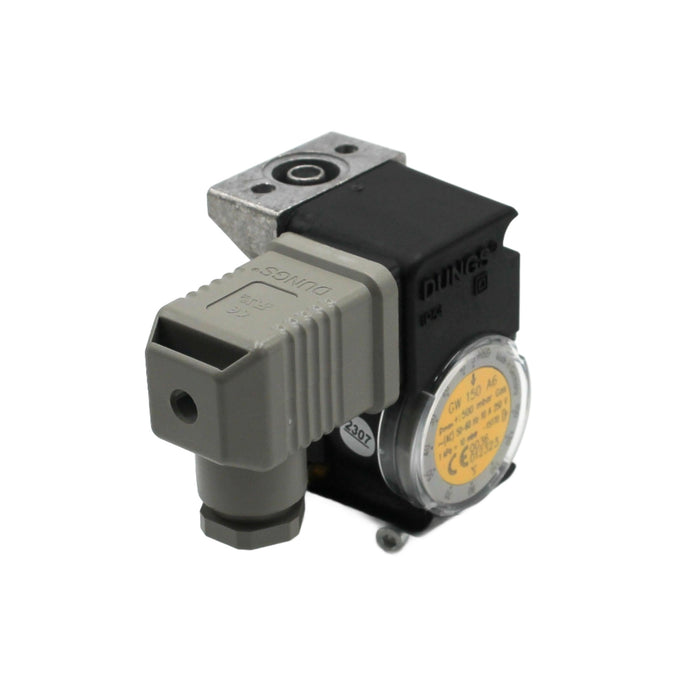

Dungs GW50 A6/1 Pressure Switch
Dungs GW50 A6/1 Pressure Switch
GW¬¦A6/1
Slow response time during short-term pressure fluctuations by additional damping nozzle.
The pressure switch GW50 A6 is an adjustable compact pressure switch according to EN 1854 for combustion plants. The pressure switches are suitable for switch-on, switch-off and switch-over of an electric circuit at a variable pressure actual value, relative to the set desired value.
The setpoint (switching point) is set on an adjusting wheel with scale.
A test nipple is integrated in the metal housing as standard.
Application
Pressure monitoring in combustion, ventilation and air-conditioning technologies. Suitable for gases of families 1,2,3 and other neutral gaseous media.
Approvals
EU type testing certificate as per:
¬ EU-Gas Appliances Regulation
¬ EU-Pressure Equipment Directive
Dungs Part Number: 231113 or 242676
Dungs Pressure Switch Dimensions
| GW Series | Height | Width | Length | Pressure Range |
|---|---|---|---|---|
| GW3 A5 | 78mm | 48.5mm | 44.7mm | 0.1-0.3 kPa (1-3 mbar) |
| GW10 A5 | 78mm | 48.5mm | 44.7mm | 0.2-1 kPa (2-10 mbar) |
| GW50 A5 | 78mm | 48.5mm | 44.7mm | 0.5-5 kPa (5-50 mbar) |
