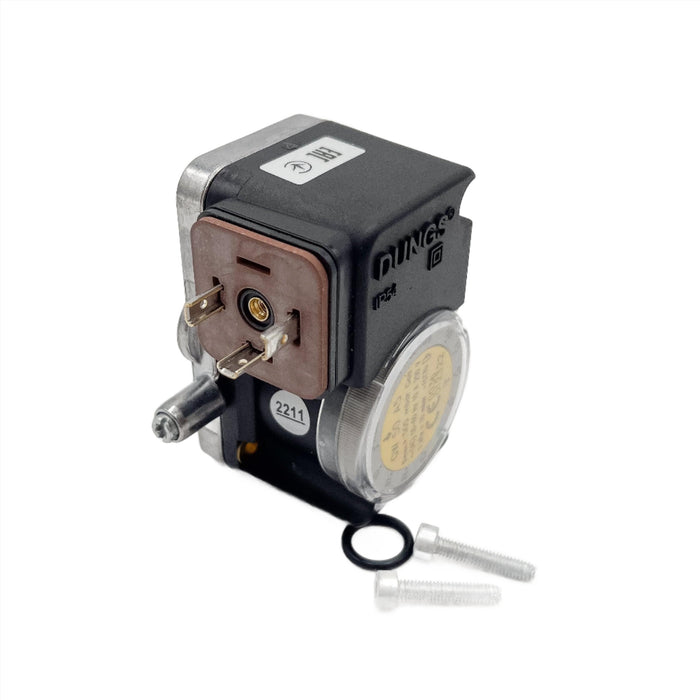

Dungs GW50 A5 Compact pressure switch for multiple actuators
The GW50 A5 pressure switch is a compact pressure switch as per EN 1854 for DUNGS multiple actuators. The pressure switches are suitable for switching a circuit on, off or over on changes in actual pressure relative to the set switching point (reference value)
The switching point can be set easily and quickly using a setting wheel provided with a scale without using a pressure gauge.
Pressure switches for DUNGS multiple actuators GasMultiBloc and DMV double solenoid valve which can be either mounted directly on housing or by using an adapter.
Function
Single-acting pressure switch in overpressure range. The pressure switches operate without any power supply.
Switching response
GW50 A5 Short response time during pressure fluctuations.
Switching function
As pressure rises: 1 NC opens, 2 NO closes
As pressure falls: 1 NC closes, 2 NO opens
Technical Specifications
IP Rating: IP54
Pressure Range: 0.5-5 kPa (5-50 mbar)
Max Pressure: 50 kPa (500 mbar)
Dungs Model Number: 272340 or 225939
