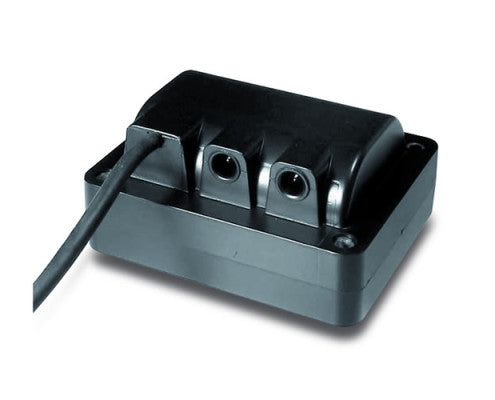

Cofi TRS 818C Ignition Transformer

TRS 818 C - Continuous Duty Dual Outlet Transformer

Professional 8kV/18mA Continuous Duty Dual Outlet Inductive Transformer

The TRS 818 C provides continuous duty performance with 8kV output at 18mA across two outlets. Engineered for demanding applications requiring constant high-voltage supply with dual-outlet flexibility and superior thermal characteristics.

Key Technical Specifications:

• Output Voltage: 8kV
• Current Rating: 18mA (continuous duty optimized)
• Operation Type: Continuous duty
• Outlets: 2 high-voltage outlets
• Supply Voltage: 230VAC, 50Hz
• Supply Cable: 3 x 0.75 mm² conductors
• Overall Length: 440mm (380mm useable length)
• Weight: Approximately 1.8kg
• Insulation Class: Class H windings
• Encapsulation: Epoxy resin protection
• Compliance: EC Approval certified
• Mounting: Flush self-tapping screw outlets (13mm deep)

Ideal for dual-zone continuous operations, redundant systems, and applications requiring reliable 24/7 high-voltage performance across multiple outputs.
