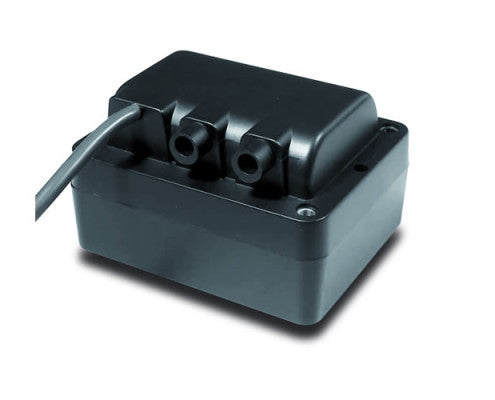

Cofi TRG 823PC Ignition Transformer
$100.01
Sale price
$100.01
Regular price
$137.00
Skip to product information
Cofi TRG 823PC Ignition Transformer
$100.01
Sale price
$100.01
Regular price
$137.00
TRG 823PC - Standard Continuous Single Outlet Transformer
Single Outlet | 8kV/20mA | Standard Performance | Continuous Duty
Dependable 8kV/20mA Single Outlet Continuous Duty Inductive Transformer
The TRG 823PC provides reliable continuous duty performance with 8kV output at 20mA through a single outlet. Engineered for standard applications requiring constant moderate high-voltage supply with proven reliability.
Key Technical Specifications:
- Output Voltage: 8kV
- Current Rating: 20mA (continuous duty optimized)
- Operation Type: Continuous duty
- Outlets: 1 high-voltage outlet
- Supply Voltage: 230VAC, 50Hz (115VAC option available)
- Supply Cable: 3 x 0.75 mm² conductors
- Overall Length: 440mm (380mm useable length)
- Weight: Approximately 2.8kg (robust construction)
- Insulation Class: Class H windings
- Encapsulation: Epoxy resin protection
- Compliance: CE Approval certified
- Mounting: Flush self-tapping screw outlet (13mm deep)
- USA Option: 120VAC-60Hz with SPMAN plug ˜ 4mm with sleeve (23mm deep)
Ideal for standard continuous applications, cost-effective 24/7 operations, and systems requiring reliable moderate high-voltage supply.
