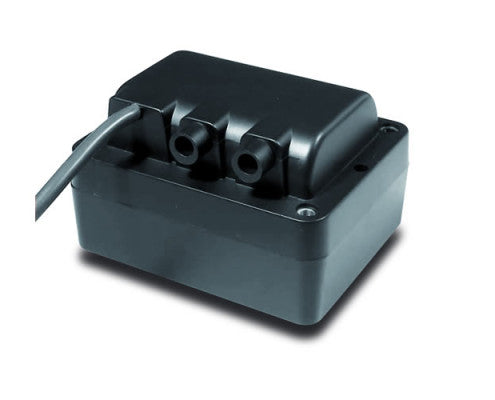

Cofi TRG 1230 Ignition Transformer

TRG 1230 - Maximum Performance Dual Outlet Transformer

Premium 12kV/30mA Dual Outlet Intermittent Inductive Transformer

The TRG 1230 represents the pinnacle of intermittent transformer performance, delivering exceptional 12kV output at 30mA across two outlets. This flagship model combines maximum voltage and current capacity for the most demanding high-voltage applications.

Key Technical Specifications:

• Output Voltage: 12kV (ultra-high voltage)
• Current Rating: 30mA (maximum current capacity)
• Operation Type: Intermittent duty
• Outlets: 2 high-voltage outlets
• Supply Voltage: 230VAC, 50Hz (115VAC option available)
• Supply Cable: 3 x 0.75 mm² conductors
• Overall Length: 440mm (380mm useable length)
• Weight: Approximately 2.8kg (heavy-duty construction)
• Insulation Class: Class H windings
• Encapsulation: Epoxy resin protection
• Compliance: CE Approval certified
• Mounting: Flush self-tapping screw outlets (13mm deep)
• USA Option: 120VAC-60Hz with SPMAN plug ˜ 4mm with sleeve (23mm deep)

Perfect for maximum performance applications, intensive testing environments, and systems requiring both ultra-high voltage and enhanced current capacity.
