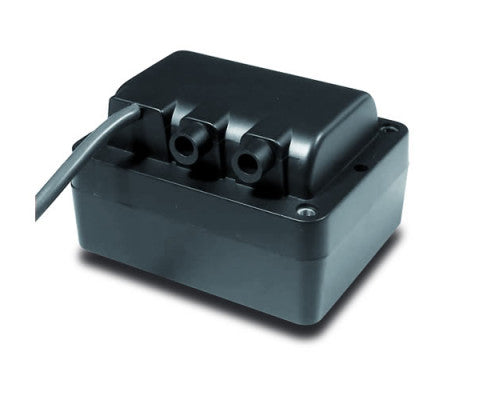

Cofi TRG 1020C Ignition Transformer
$102.75
Sale price
$102.75
Regular price
$137.00
Skip to product information
Cofi TRG 1020C Ignition Transformer
$102.75
Sale price
$102.75
Regular price
$137.00
TRG 1020C - Standard Continuous Dual Outlet Transformer
Reliable 10kV/20mA Dual Outlet Continuous Duty Inductive Transformer
The TRG 1020C provides dependable continuous duty performance with 10kV output at 20mA across two outlets. Engineered for demanding applications requiring constant high-voltage supply with dual-outlet flexibility.
Key Technical Specifications:
- Output Voltage: 10kV
- Current Rating: 20mA (continuous duty optimized)
- Operation Type: Continuous duty
- Outlets: 2 high-voltage outlets
- Supply Voltage: 230VAC, 50Hz (115VAC option available)
- Supply Cable: 3 x 0.75 mm² conductors
- Overall Length: 440mm (380mm useable length)
- Weight: Approximately 2.8kg (heavy-duty construction)
- Insulation Class: Class H windings
- Encapsulation: Epoxy resin protection
- Compliance: CE Approval certified
- Mounting: Flush self-tapping screw outlets (13mm deep)
- USA Option: 120VAC-60Hz with SPMAN plug ˜ 4mm with sleeve (23mm deep)
Ideal for dual-zone continuous operations, redundant systems, and applications requiring reliable 24/7 high-voltage performance.
